CVE TFT 2024 2025 : Boiler & Burner Controller & Programmer
CVE TFT 2024 2025 : Boiler & Burner Controller & Programmer
| No. | Picture | Model | Description | Brand | Action |
|---|---|---|---|---|---|
| 1. |  | 46176602-502 | Subbase for R7241A1050 burner controller | Honeywell |  |
| 2. |  | 46176602-503 | Subbase for R7241E1028 burner controller | Honeywell | |
| 3. |  | 46176602-504 | Subbase for R7241B1058 burner controller | Honeywell | |
| 4. | 833-1966 | Wiring sub-base | Cleaver Brooks | | |

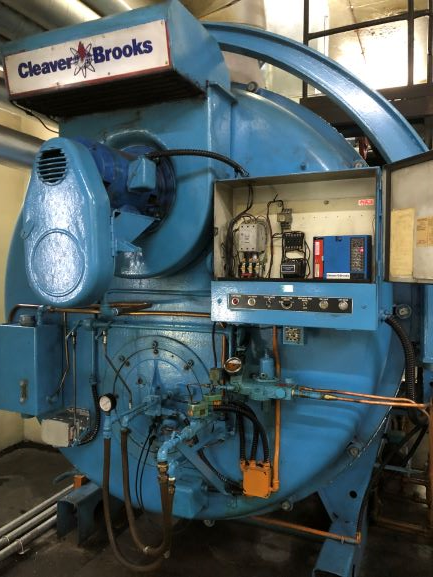

| 5. |  | 833-2290 | CB70 computerized burner control | Cleaver Brooks | |
| 6. | 833-2291 | PM70 program module | Cleaver Brooks | | |
| 7. |  | BC7000L1000 | Computerized burner controller, 120Vac | Honeywell | |
| 8. |  | BC7000L1018 | Computerized burner controller, 120Vac | Cleaver Brooks | |
| 9. |  | CB70 | Computerized burner control | Cleaver Brooks | |
| 10. |  | DBC2000E1018 | Honeywell burner controller | Honeywell | |
| 11. |  | DKG 972 Mod 10 | Control box, 220-240Vac, 3sec pre-ignition time, 9.5sec post-ignition time | Satronic | |
| 12. |  | DKW 972 | Burner control box, 220/240Vac, ts:5 sec | Satronic | |
| 13. |  | DLG 976 Mod 01 | Control box, 2-stage operation, 220-240Vac, 24sec supervised pre-purge time, 3sec pre-ignition time, 2sec post-ignition time | Satronic | |
| 14. |  | DMG 970 Mod 3 | Control box, 220-240Vac, 40sec supervised pre-purge time, 3sec pre-ignition time | Satronic | |
| 15. |  | EC7810A1035 | Burner control, 220-240Vac, PFEP:5 or 10 sec, MFEP:5 or 8 sec, PP:5 sec | Honeywell | |
| 16. |  | EC7820A1026 | Burner control, 220-240Vac, -40 to 140°F, PFEP:5 or 10 sec, MFEP:5 or 8 sec, PP:5 sec | Honeywell | |
| 17. |  | EC7823A1004 | Flame switch, 220-240Vac, 50/60Hz, two SPDT output | Honeywell | |
| 18. |  | EC7830A1033 | Burner control, 220-240Vac, PFEP:3 to 5 sec, MFEP:4 or 7 sec, PP:2 sec | Honeywell | |
| 19. |  | EC7830A1041 | Burner control, 220-240Vac, PFEP:3sec, MFEP:4 or 7 sec, PP:30sec | Honeywell | |
| 20. |  | EC7830A1058 | Burner control, 220-240Vac, 50/60Hz, PFEP:3 or 5 sec, PP:30 sec | Honeywell | |
| 21. |  | EC7850A1072 | Burner control, 220-240Vac, PFEP:3 sec, MFEP:6 or 7 sec, PP:2 sec | Honeywell | |
| 22. |  | EC7850A1080 | Burner control , 220-240Vac, PFEP:3 sec, MFEP: 6 or 7 sec, PP:30 sec | Honeywell | |
| 23. |  | EC7850A1122 | Burner control 220-240Vac, PFEP:3 sec, MFEP:6 or 7 sec, PP:15 sec | Honeywell | |
| 24. |  | EC7890A1011 | Primary control, 220-240Vac, PFEP:4,10 or 30 sec | Honeywell | |
| 25. |  | EC7890B1010 | Primary control, 220-240Vac, PFEP:4 or 30 sec, Includes shutter drive capability | Honeywell | |
| 26. |  | EC7890B1028 | Primary control, 220-240Vac, PFEP:4 or 30 sec, Includes shutter drive capability | Honeywell | |
| 27. |  | MMG 810.1 Mod 45 | Combi oil/gas burner control box, 220-240Vac, 50/60Hz, 40sec pre-purge time, 8sec ignition time, 5sec safety time | Satronic | |
| 28. |  | MMI 810.1 Mod 43 | Gas burner control box, 220-240Vac, 50/60Hz, 40sec pre-purge time, 6sec ignition time, 3sec safety time | Satronic | |
| 29. |  | R4140G1114 | Automatic programming control, 240Vac, pre-purge:70 sec, FEP:10,30 or 60 sec, postpurge:25 sec | Honeywell | |
| 30. |  | R4140L1014 | Automatic programming control, 120Vac, pre-purge:60sec, FEP:10 or 15 sec, postpurge:15 sec | Honeywell | |
| 31. |  | R4140L1105 | Automatic programming control, 120Vac, pre-purge:60sec, FEP:10 or 15 sec, postpurge:15 sec, early spark termination:5 sec | Honeywell | |
| 32. |  | R4140L1147 | Automatic programming control, 120Vac, pre-purge:60sec, FEP:10,15 or 30 sec, postpurge:15 sec, early spark termination:5 sec | Honeywell | |
| 33. |  | R4140L1154 | Automatic programming control, 240Vac, pre-purge:60 sec, FEP:5 or 10 sec, post-purge:15 sec | Honeywell | |
| 34. |  | R4140L1170 | Automatic programming control, 240Vac, pre-purge:60 sec, FEP:5 or 10 sec, post-purge:15 sec | Honeywell | |
| 35. |  | R4150P1046X15 | Flame safeguard programming control, 100vac, 55s pre-purge, 20s post purge, 30s safety switch | Yamatake | |
| 36. |  | R4150P1053X15 | Flame safeguard programming control, 200Vac, 55s pre-purge, 20s post-purge, 30s safety switch | Yamatake | |
| 37. |  | R4332B100-1 | Maximum safety flame safeguard, multiburner module, power & shutter voltage:100Vac | Yamatake | |
| 38. |  | R4341B1088 | Burner programmer, 220Vac, 38s pre-purge, 12s post-purge | Honeywell | |
| 39. |  | R4341B1096 | Burner programmer, 240Vac, 38s pre-purge, 12s post-purge | Honeywell | |
| 40. |  | R4341B1104 | Burner programmer, 115Vac, 38s pre-purge, 12s post-purge | Honeywell | |
| 41. |  | R4341B1120 | Burner programmer, 220Vac, 38s pre-purge, 12s post-purge | Honeywell | |
| 42. |  | R4341B1153 | Burner programmer, 115Vac, 38s pre-purge, 12s post-purge | Honeywell | |
| 43. |  | R4341C1086 | Burner programmer, 220Vac, 70s pre-purge, 9s post-purge | Honeywell | |
| 44. |  | R4795A1016 | Burner control, 120Vac, safety switch:15 sec | Honeywell | |
| 45. |  | R4795A1040 | Burner control, 220Vac, safety switch:15 sec | Honeywell | |
| 46. |  | R7140L2007 | Programming control replacing BC7000L programmer | Honeywell | |
| 47. |  | R7241A1050 | Burner programmer, 230Vac, 30s pre-purge | Honeywell | |
| 48. |  | R7241A1076 | Burner programmer, 110Vac, 30s pre-purge | Honeywell | |
| 49. |  | R7241B1058 | Burner programmer, 230Vac, 30s pre-purge | Honeywell | |
| 50. |  | R7241E1010 | Burner programmer with communication, 230Vac, 30s pre-purge | Honeywell | |
